Product Description
The Castellex GSP40 Gas & Radiation Monitoring Panel is designed to detect harmful gases and elevated radiation levels within protected areas.
The system provides early warning of hazardous conditions, allowing occupants and operators to respond in time and activate NBC/CBRN air filtration systems or other protective measures required to maintain a safe environment.
The GSP40 system consists of multiple gas and radiation detectors connected to a central monitoring and control panel. These detectors continuously monitor the surrounding area and transmit measurement data to the panel for processing and evaluation.
The control panel continuously analyses incoming detector signals and compares them with predefined safety thresholds. When measured values exceed programmed limit levels, the system activates clear visual and audible alarms to warn occupants of the potential hazard.
Continuous Gas & Radiation Monitoring

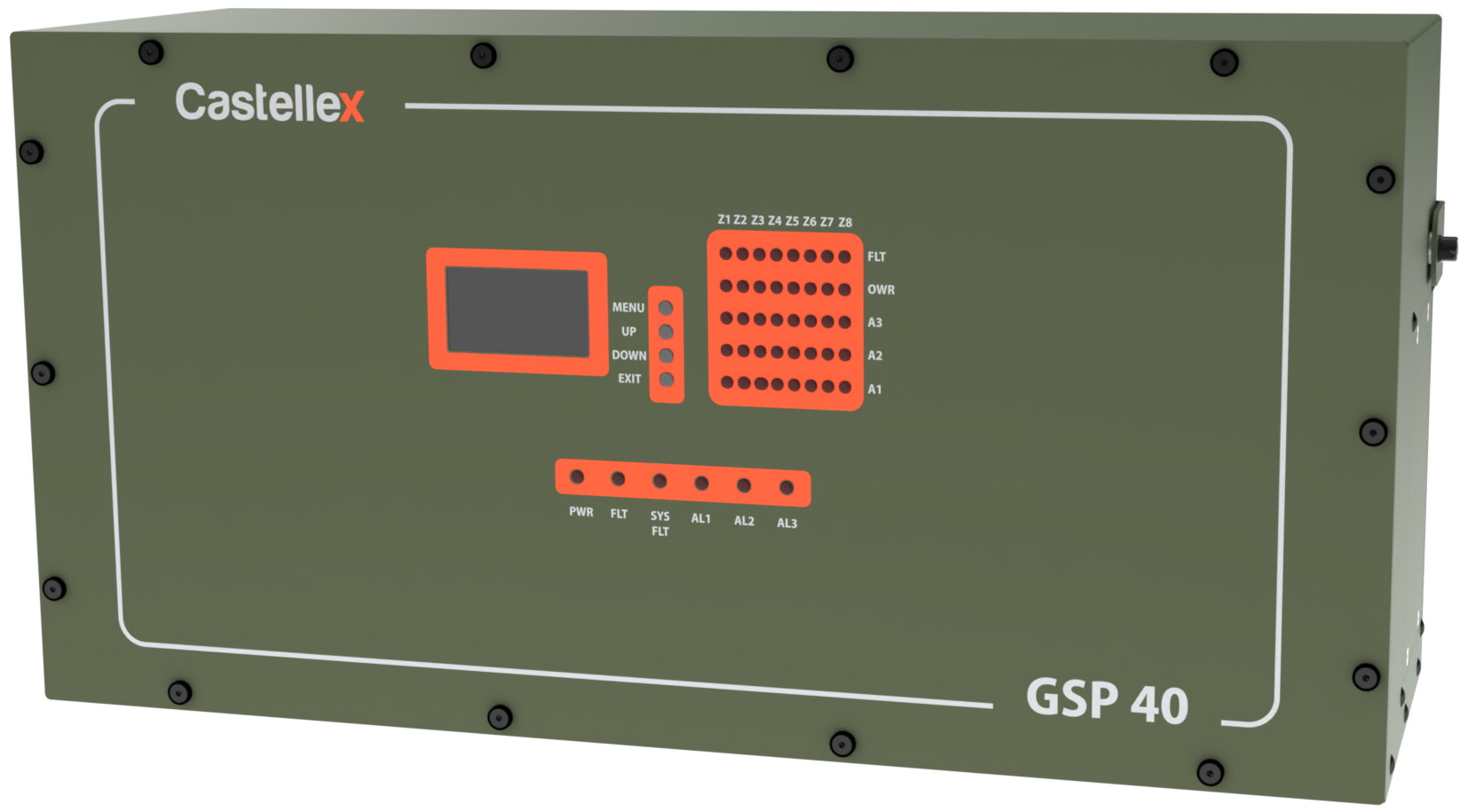

The GSP40 Gas & Radiation Monitoring Panel is designed as a wall-mounted unit suitable for installation in protected facilities and technical rooms.
The panel continuously receives measurement signals from connected detectors and processes the data in real time to provide reliable and uninterrupted monitoring.
An OLED display on the front panel provides real-time information about the operational status of the system and the condition of each connected detector, allowing users to quickly assess the safety status of the monitored area.
Why Continuous Monitoring Is Essential
Dangerous and poisonous gases, including industrial toxic gases and chemical warfare agents, as well as radiation, cannot be detected by human senses.
Continuous monitoring is therefore essential in enclosed or protected environments where occupant safety depends on early hazard detection.
The Castellex GSP40 is suitable for applications including:
- Fallout shelters
- Bomb shelters/ bunkers
- NBC/CBRN container/ mobile shelters
- Protected facilities
- Industrial facilities
- Laboratories
- Technical rooms
- Mining
- Other protected environments
Early Detection for NBC/CBRN Protection
Early detection is a critical part of an effective NBC/CBRN protection system.
By continuously monitoring connected gas and radiation detectors, the Castellex GSP40 provides occupants and operators with an immediate warning when predefined hazard thresholds are exceeded.
This allows protective measures, including NBC/CBRN air filtration systems, to be activated when required and helps maintain a safer environment within the protected area.
Technical Data
Power source: 240V AC
Power consumption: 8W (without detectors connected)
Inputs: Up to 40
Display: OLED (128 × 64)
LED indicators: PWR, FLT, SYS FLT, AL1, AL2, AL3
Zone indicators: FLT, OWR, A1, A2, A3 (for each of the 8 zones)
Audible alarm: Yes, internal buzzer
Emergency power module: BP600u, 24V 7.2 A/h
Operating temperature: -15°C to +60°C
Humidity: Up to 90%, non-condensing
Housing: Powder-coated steel (RAL6003)
Weight: 17 kg
Warm-up time: Up to 110 seconds
Clock battery: 3V (RTC)
