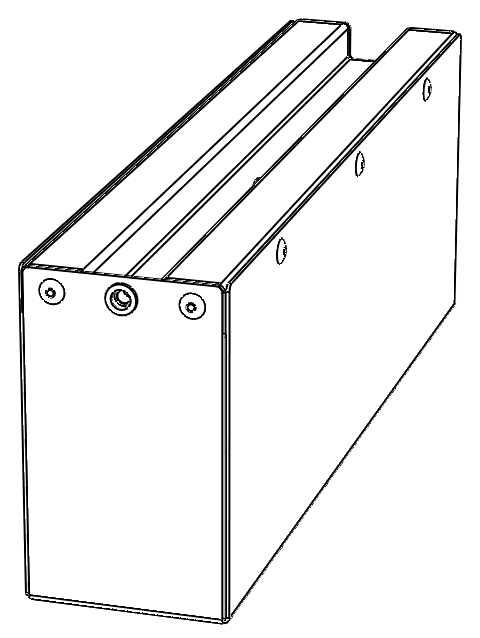

BP600u Emergency Power Module for Air300mkII and Air500 Series

Product Description

The Castellex BP600u Emergency Power Module provides backup power for Castellex Air300mkII and Air500 Series NBC air filtration systems. During mains power outages, the BP600u supports continued operation of the connected NBC air filtration unit. Suitable applications include nuclear bunkers, panic rooms, bomb shelters, and domestic or commercial environments at high risk of pollution or attack.

Features

• Compatible with Castellex Air300mkII and Air500 Series
• Backup power during mains power outages
• 24 V DC nominal voltage and 7 Ah nominal capacity
• NS39-2 connector

Technical Specifications

• Model: BP600u
• Nominal voltage: 24 V DC
• Nominal capacity: 7 Ah
• Capacity at the 10-hour discharge rate, 20°C: 6.4 Ah
• Capacity at the 20-hour discharge rate, 20°C: 7 Ah
• Charging voltage: 27.3 V
• Charging current: 1 A
• Charging current limit: 1.7 A
• Maximum discharge current: 2 A
• Operating temperature range: -20°C to +60°C
• Connector: NS39-2
• Case material: zinc-galvanised steel
• Dimensions: 30.5 × 7 × 11 cm
• Packaging: rigid cardboard box
• Weight: 5.5 kg
